Hobbywing

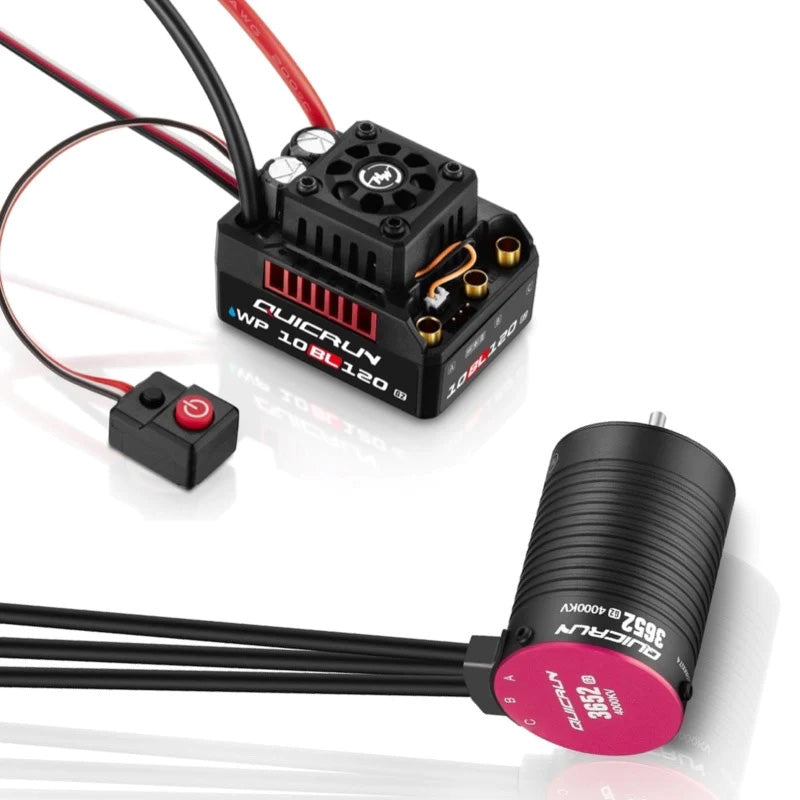

COMBO QUICRUN 10BL120 G2+3652 SL G2; 5400KV
SKU:HWI38030209
Couldn't load pickup availability
1/10th, Sensorless brushless combo
Includes:
- (1) QUICRUN WP 10BL120 SL G2 ESC (Waterproof, Sensorless)
- (1) QUICRUN 3652SL or 3660SL G2 brushless motor w/ your choice of KV
- HOBBYWING decals
- Accessories
Motor Features:
- Explosive output power - 10% increase in maximum output power.
- Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
- Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
- Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
- The QUICRUN 3652 SL brushless G2 motor is ideal for off-road or on-road hobbyists, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
- QUICRUN motors feature an explosion-proof rotor design with reinforced aluminum end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
- This QUICRUN 3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminum, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200deg C high-temperature-resistant enameled wire for strong performance and longevity.

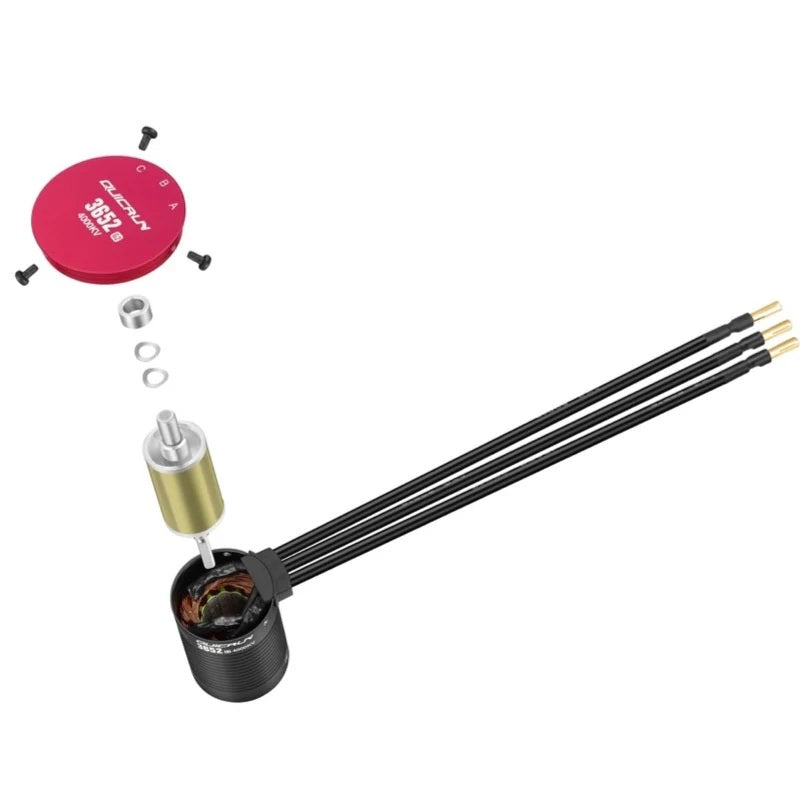

- The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.

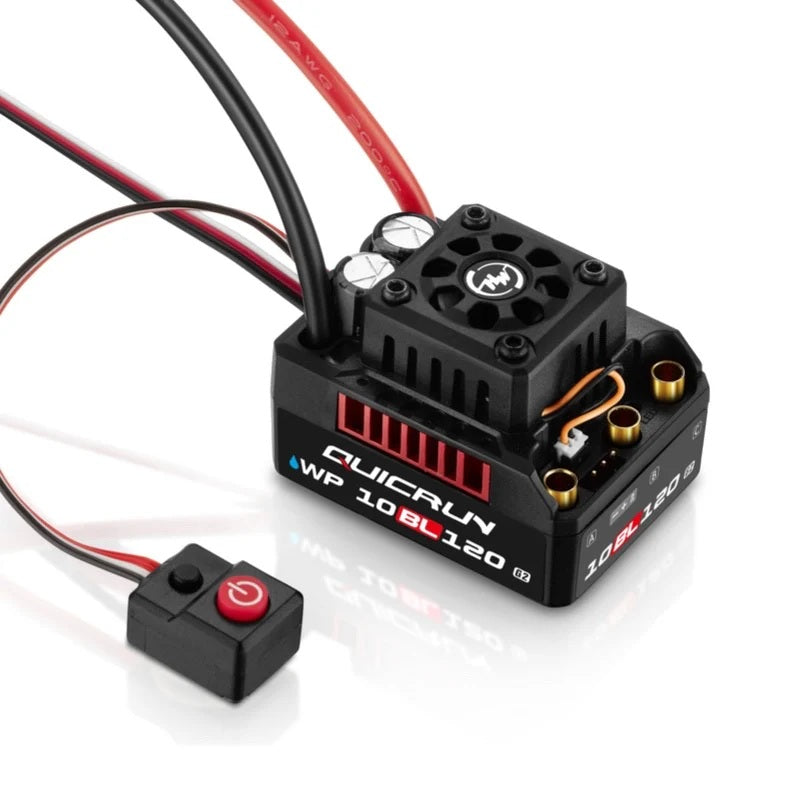

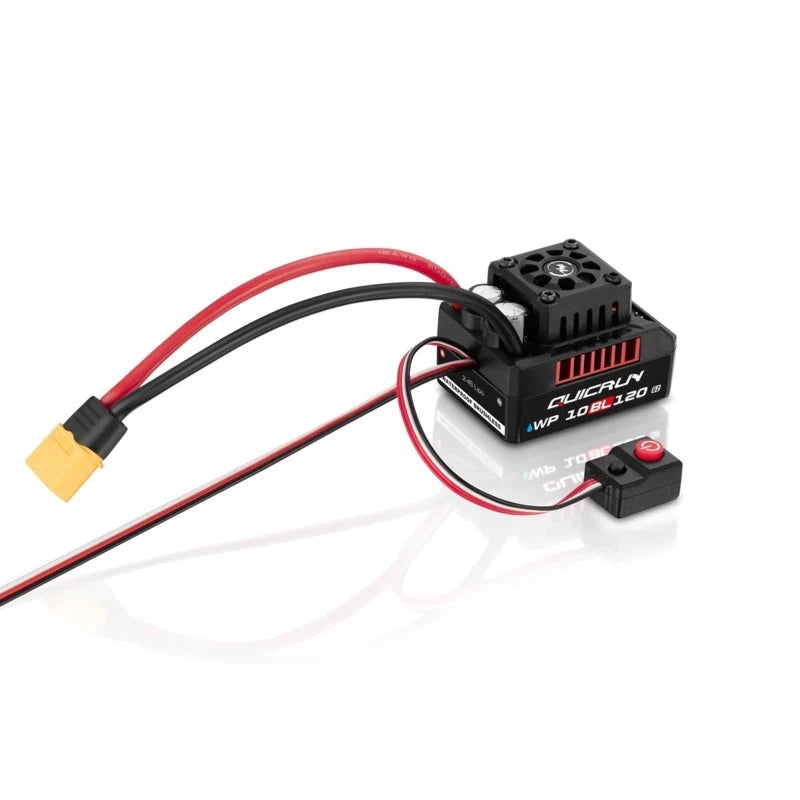

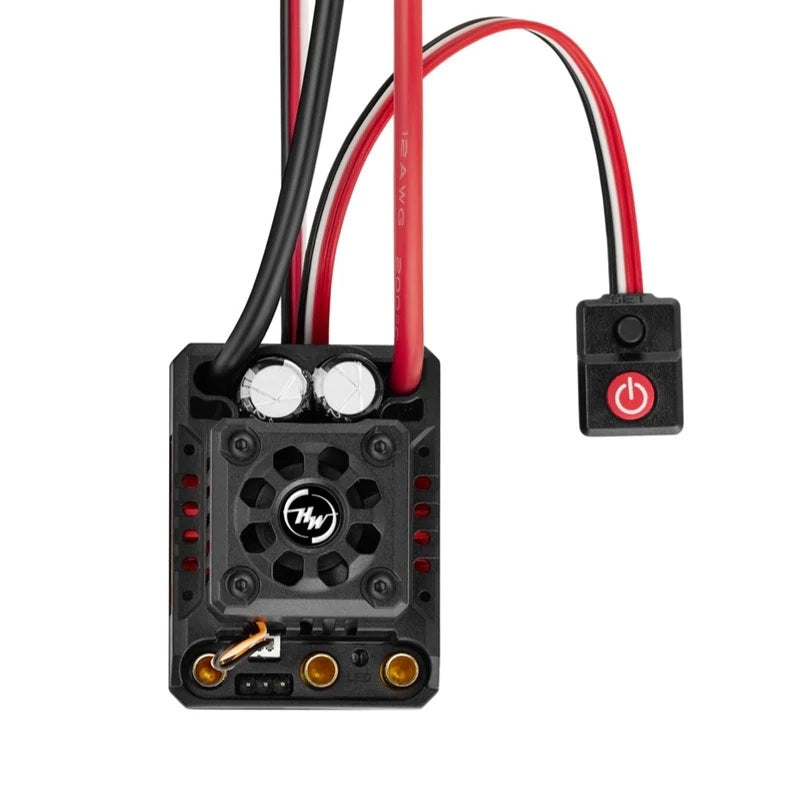

ESC Features:
- High protection level all-weather operation: The IP-67 waterproof rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
- Intelligent freewheeling technology, greatly improved performance: The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
- Powerful built-in BEC: The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
- Efficient cooling system: The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results are efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.
- Capacitor Thermal Protection: Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
- Built-in capacitor: Super large built-in capacitor, the built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for the 10th scale models on th
